Building from an existing format (KurtUSB) design included product conception, DSP circuit design and firmware (TI DSP C2000, Code Composer) development for high speed data acquisition algorithms (digital demodulation, band-pass, and convolution filters),  ladder logic (PLC) embedded implementation, DeviceNet and USB 2.0 protocol implementation, circuit board layout, Windows USB driver development, and produced a PC application (MFC, C++) allowing the user to create and edit ladder logic programs and operator interface screens.

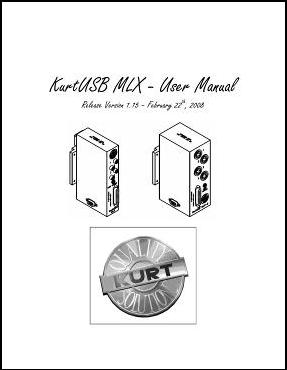

Produced device user manual.

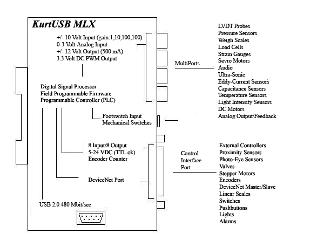

Compact Automation Controller
USB LogoController SchematicCode Composer Studio logoDeviceNet LogoController PCB LayoutController SchematicCustom HMI ApplicationCustom Ladder Logic Editor ApplicationCustom PC Drivers and Hardware Interface SoftwareController User ManualController Product ConceptController PrototypeTexas Instruments LogoMade in the U.S.A.
